HUAWEI Mate Xs Specification

• Interstellar blue

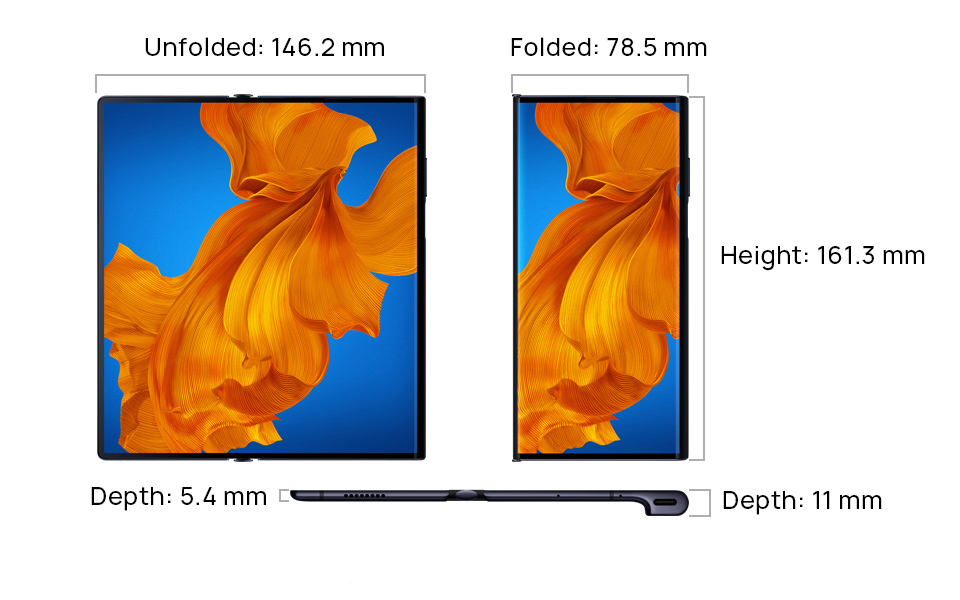

Size:
Unfolded: 8 inches
Folded:
Main screen: 6.6 inches
Secondary screen: 6.38 inches
*With a rounded corners design on the display, the diagonal length of the screen is measured according to the standard rectangle (the actual viewable area is slightly smaller).
Colour:
16.7 million colours

Type:
OLED

Resolution:
Unfolded: 2480 x 2200
Folded:
Main screen: 2480 x 1148
Secondary screen: 2480 x 892
*With a rounded corners design on the display, the resolution of the screen is measured according to the standard rectangle (the effective pixels are slightly less).

CPU:
HUAWEI Kirin 990 5G
Octa-core Processor
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz

GPU:
16-Core Mali-G76

NPU:
Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)

8 GB RAM + 512 GB ROM
*The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to app updates, user operations, and other related factors.

External Memory Support:
NM SD Card, up to 256 GB
*sold seperately

Rear Camera:
Leica Quad Camera:
40 MP (Wide Angle Lens, f/1.8 aperture) + 16 MP (Ultra Wide Angle Lens, f/2.2 aperture) + 8 MP (Telephoto, f/2.4 aperture, OIS), HUAWEI Time-of-Flight (TOF) Camera
Supports autofocus (phase focus, contrast focus), supports AIS (HUAWEI AI Image Stabilization).
*In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.
*The photo pixels may vary depending on the shooting mode.

Front Camera:
The rear camera doubles as the front camera after the phone is folded.
*The photo pixels may vary depending on the shooting mode.

4500 mAh (Typical Value)

*The capacity is 2250 mAh (Typical Value) x 2

4400 mAh (Rated Value)
*The capacity is 2200 mAh (Rated Value) x 2

**Typical Value. Actual capacity may vary slightly.
This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.
***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.

HUAWEI SuperCharge (Max 55 W)
*HUAWEI SuperCharge cable and charger is required.

Primary SIM card:
5G NR: N38 / N41 (2515 ~ 2690 MHz) / N77 / N78 / N79 / N1 / N3 / N28（TX: 703 - 733 MHz,RX: 758 - 788 MHz）
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)

Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8 (850 / 900 / 1800 / 1900 MHz)

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier's network and related services deployment.
*The current version only supports N41 (2515 - 2690 MHz) / N78 on 5G. Support for other frequency bands will be included in later releases pushed over HOTA.
*The Initial commercial version supports N41 (2515 - 2690 MHz) / N78 on 5G, Support for other frequency bands will be enable in later releases pushed over HOTA, The HOTA time and capability may vary depends on region and country.

WLAN:
802.11a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz

Bluetooth:
Bluetooth 5.0, BLE, SBC, AAC, LDAC

USB:
Type-C，USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.

Earjack:
Type-C earjack

Others:
PC Data Synchronisation

GPS (L1 + L5 dual band) / AGPS / Glonass / BeiDou / Galileo (E1 + E5a dual band) / QZSS (L1 + L5 dual band)

Read Write mode / Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported.
*SIM card only support SIM 1 slot.
*Payment by SIM card is only available for SIM 1 slot.

Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Infrared Sensor
Ambient Light Sensor
Barometer
Colour Temperature Sensor
Fingerprint Sensor (Side edge)

*.mp3、*.mp4、*.3gp、*.ogg、*.amr、*.aac、*.flac、*.wav、*.midi

*.3gp、*.mp4

1）Phone (battery and protective film included) x 1
2）Quick Start Guide x 1
4）Type-C digital headset x 1
5）Charger (EU) x 1
6）Type-C Cable x 1
7）Eject pin x 1
8）Folding Protective Case x 1
9) Warranty card x 1 Dependent on market
10) Precautions card x 1
11）Folding Protective Case Installation Guide x 1

*May vary in different markets. Subject to the actual product.
