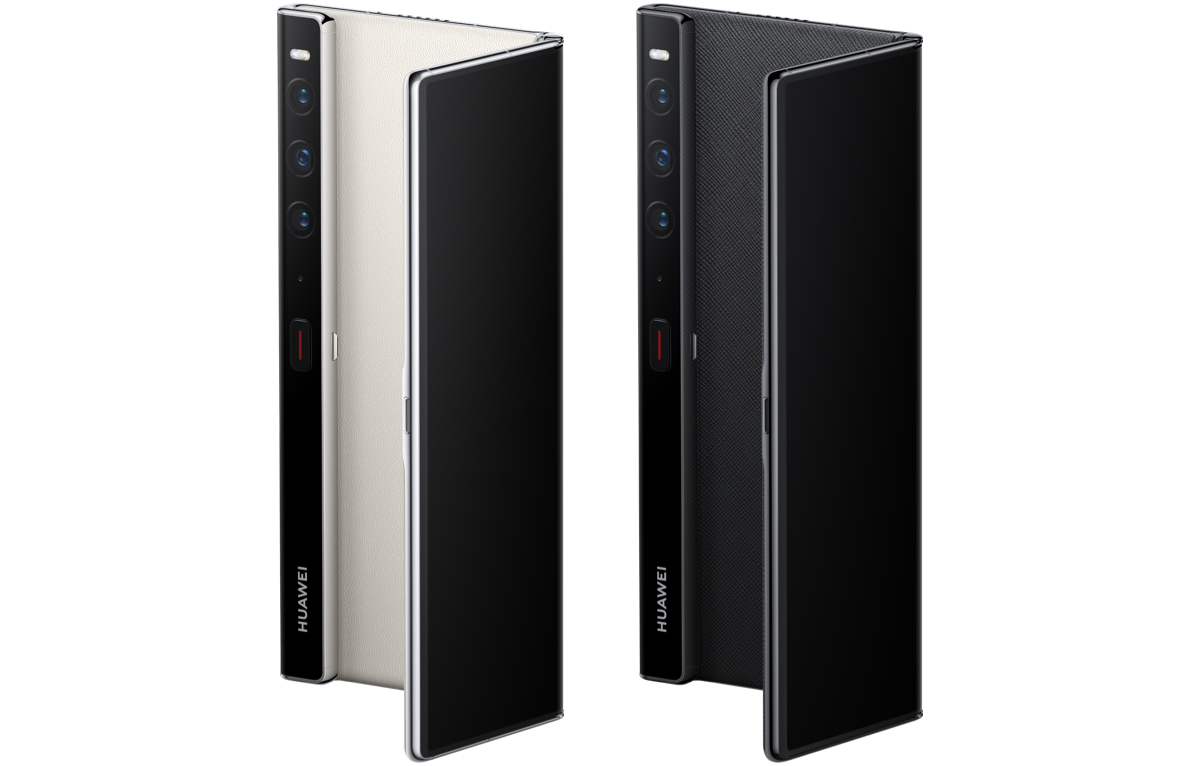

HUAWEI Mate Xs 2 Specification

156.5 mm

Unfolded: 139.3 mm

Folded: 75.5 mm

Unfolded: 5.4 mm~11.1 mm

Folded: 11.1 mm

Approx. 255 g (including the battery)

*Claimed weight does not include the weight of the screen protective film.

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product. Depth measurement when unfolded does not include the frame of the main display.

Unfolded: 7.8 inches

Folded: 6.5 inches

*With a rounded corners design on the display, the diagonal length of the unfolded screen is 7.8 inches and the diagonal length of the folded screen is 6.5 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

1.07 billion colours

OLED

up to 120 Hz refresh rate

1,440 Hz high frequency PWM dimming

up to 240 Hz touch sampling rate

Unfolded: 2480 × 2200 Pixels

Folded: 2480 × 1176 Pixels

*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

424 ppi

Snapdragon 888 4G

Octa-core, 1 × Cortex-X1@2.84 GHz + 3 × Cortex-A78@2.42 GHz + 4 × Cortex-A55@1.8 GHz

Adreno 660

EMUI 12

8 GB RAM + 512 GB ROM

*The available internal storage may be smaller as part of the internal storage is occupied by software.

NM SD Card, up to 512 GB

*sold separately.

50 MP True-Chroma Camera (Wide Angle, f/1.8 aperture)

13 MP Ultra-Wide Angle Camera (f/2.2 aperture)

8 MP Telephoto Camera (f/2.4 aperture,OIS), support AF

*The actual image resolution may vary depending on the shooting mode.

phase focus, contrast focus

Digital Zoom, Optical Zoom, Hybrid Zoom

Support up to 8192 × 6144 pixels

*The actual image resolution may vary depending on the shooting mode.

Support up to 3840 × 2160 pixels, support 1080p@960fps ultra slow motion video.

*The actual video resolution may vary depending on the shooting mode.

**1080p@960fps is implemented based on AI frame interpolation algorithm technology.

LED flash

Mirror Shooting, AI Cinemagraph*, Telephoto Assist Viewfinder, Story Creator, Audio Zoom, High-res, Time-Lapse, Ultra Wide Angle Lens, Aperture, Dual-View Video, Night, Macro, Portrait, Pro, Slow-Mo, Panorama, Monochrome, Light painting*, Filter, Stickers, Documents, Master AI, Moving Picture, 4D Predictive Focus,  Capture Smiles, Audio Control, Timer,  Burst Shooting

*HOTA upgrade support

10.7 MP Selfie Camera (Wide Angle, f/2.2 aperture)

*In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

Support up to 3776 × 2832 pixels

*The actual image resolution may vary depending on the shooting mode.

Support up to 3840 × 2160 pixel

*The actual video resolution may vary depending on the shooting mode.

Slow-Motion, Intelligent Field of View, Portrait, Panorama, AR Lens, Time-Lapse, Moving Picture, Filter, Stickers, Capture Smiles, Mirror Reflection, Audio Control, Timer

4,600 mAh (typical value)

*The Battery Rated Capacity is 4,500 mAh.

**Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.

***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.

HUAWEI SuperCharge (Max 66 W)

*HUAWEI SuperCharge cable and charger is required.

4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 18 / 19 / 20 / 26 / 28

4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41

3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19

2G GSM: Bands 2 / 3 / 5 / 8(850 / 900 / 1,800 / 1,900 MHz)

4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 18 / 19 / 20 / 26 / 28

4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41

3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19

2G GSM: Bands 2 / 3 / 5 / 8(850 / 900 / 1,800 / 1,900 MHz)

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.

**Functions available on the live network depend on the situations of carrier's network and related services deployment.

2.4 GHz and 5 GHz

802.11a/b/g/n/ac/ax,2 × 2 MIMO,HE160,4,096 QAM,8 Spatial-stream Sounding MU-MIMO

*Need router support.

Download and upload peak physical rate up to 4 Gbps

*Need router support.

Bluetooth 5.2, Support BLE, SBC, AAC, LDAC

USB Type-C, USB 3.1 GEN1

*This function should be used with the USB cable (non-standard USB cable, need to be purchased separately) that supports this function.

USB Type-C earjack

*Support Type-C analog and digital headset.

Read Write mode / Card Emulation mode (payment by *SIM card, or HCE) is supported.

*The SIM card used for SIM card payment can only be inserted into the SIM1 card slot.

GPS (L1 + L5 Dual band) / AGPS / GLONASS / BeiDou (B1I + B1C + B2a Tri-band) /

GALILEO (E1 + E5a Dual band) / QZSS (L1 + L5 Dual band) / NavIC

Gravity Sensor

Infrared Sensor

Fingerprint Sensor

Hall Sensor

Barometric Pressure Sensor

Gyroscope

Compass

Ambient Light Sensor

Proximity Sensor

Laser Sensor

Colour Temperature Sensor

HUAWEI Histen, support stereo sound

*.mp3, *.mp4, *.3gp,*.ogg, *.amr, *.aac, *.flac, *.wav, *.midi

*.3gp、*.mp4

Phone (Built-in battery) × 1

Charger × 1

USB Type-C Cable × 1

Quick Start Guide × 1

Eject Tool × 1

PU Case × 1 (Depending on Markets)

PU Case Guide × 1 (Depending on Markets)

Warranty Card × 1 (Depending on Markets)

Protective Film* (attached to the phone) × 1

Precautions Card × 1

*May vary in different market. Subject to the actual product.
