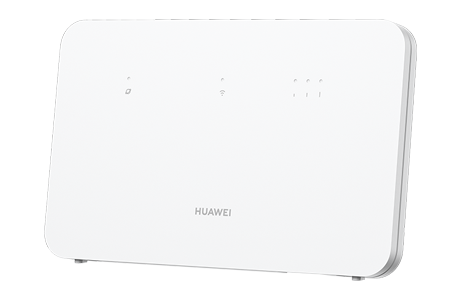

HUAWEI 4G CPE 3
  • HUAWEI 4G CPE 3
White
  • Height

    125 mm

    Width

    198 mm

    Depth

    25 mm

    Weight

    Approximately 230 g (excluding the power adapter)

    *Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

  • Communication Standard

    Cat 7

    Applicable Network

    4G

    4G Transmission Rate

    Max. DL: 300 Mbps

    Max. UL: 100 Mbps



    *Theoretical value. The actual rate varies with the operator, network conditions, distance, and terminal type.

  • Transmission Standard

    Wi-Fi 5

    Wireless Transmission Rate

    2.4 GHz: 400 Mbps (theoretical value)

    5 GHz: 867 Mbps (theoretical value)

    Wireless Frequency Band

    2.4 GHz、5 GHz

  • External Antenna

    One external LTE antenna ports (SMA), allowing users to purchase antennas

    5G/4G Antenna Type

    Built-in 4G main and diversity antennas, external antennas can be removable

    WLAN Antenna Type

    Built-in dual-band Wi-Fi antenna, non-removable

  • RAM: 256 MB DDR

    ROM: 256 MB NAND Flash

    *Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

  • Quick start guide: 1

    Power adapter: 1

    Ethernet cable: 1

    Warranty: 1

  • Internet status indicator: 1

    Wi-Fi indicator: 1

    Group of signal strength indicators

  • Power

    < 12 W

    AC / DC Power Supply

    AC: 100 V～240 V  50Hz/60Hz

    DC: 12 V/1 A

  • HUAWEI AI Life App

  • Temperature

    Operating temperature: 0 °C ~ 40 °C,

    Storage temperature: -20 °C ~ +70 °C

    Humidity

    5% ~ 95% (non-condensing)

  • CPE: 1 (Standard)

    Socket: 1 (Standard)

    Power supply adaptor: 1 (Standard)

    Quick Start: 1 (Standard)

    Ethernet cable: 1 (Optional)

    Phone cable: 1 (Optional, not included the B535-232a)

    Warranty card: 1 (Optional)
