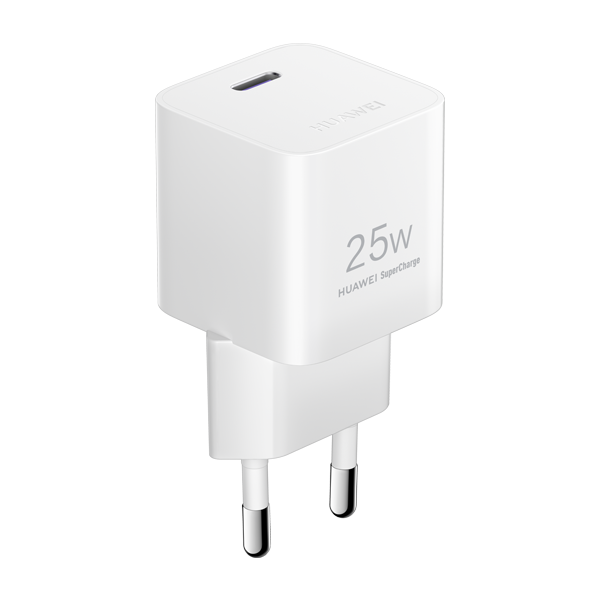

HUAWEI Mini Charger (SuperCharge Max 25 W) Specification

• Dimensions
  (Height × Width × Depth):

  32 mm × 32 mm × 32 mm (excluding the AC plug)

  Weight:

  Net weight: about 43.3 g

  packaged weight: about 98.6 g

  *Data comes from Huawei labs. Actual data may vary slightly depending on the configuration, manufacturing process, and measurement method.

• Type

  Travel charger

• Certification

  CB, CE, and UkrSEPRO

• OPERATING TEMPERATURE

  -10℃ to +35℃

• STORAGE TEMPERATURE

  -40℃ to +70℃

• Output Port

  USB Type-C × 1, with white rubber core

• Environmental Protection

  Environment protection:

  Directive 2011/65/EU (RoHS)

  Regulation (EC) No 1907/2006 (REACH)

  Directive 2012/19/EU (WEEE)

  Directive 2013/2/EU

• Materials

  Heat-resistant and flame-retardant polycarbonate (PC)

• Plug Specifications

  European standard non-folding pin

• Product Execution Standards

  IEC60950-1; IEC62368-1:2014; IEC62368-1:2018

• Relative Humidity

  5% to 95%

• Highest Operating Altitude

  5000 m

• Maximum Simultaneous Charging Device

  1

• Maximum Output Power

  USB Type-C port: 25 W Max

• Output Protocol

  USB Type-C: Huawei SuperCharge fast charging protocol (SCP A and SCP B), standard QC 2.0 protocol, and standard PD 3.0/PPS protocol

  (The QC and PD protocols are designed for compatibility only.)

• Input Specifications

  200-240V AC, 50/60 Hz, 0.75A

  100-130V AC, 50/60 Hz, 0.75A

• Output Voltage and Current Protocol

  200-240V AC, 50/60 Hz:

  USB Type-C: 5V 3A, 9V 2.78A Max, 10V 2.5A Max, 11V 2.25A Max

  100-130V AC, 50/60 Hz:

  USB Type-C: 5V 2.4A, 9V 2A Max, 10V 1.8A Max, 11V 1.6A Max

• Packaging Dimensions
  Height × Width × Depth :

  100 mm × 100 mm × 38 mm

  *Actual dimensions may vary depending on the product specifications, manufacturing process, and measurement method.

• Protective features

  Protections against overvoltage, overcurrent, overtemperature, short-circuit, undervoltage, electromagnetic fields, electrostatic discharge, and lightning strikes

• Packing List

  Charger × 1, Quick Start Guide × 1
