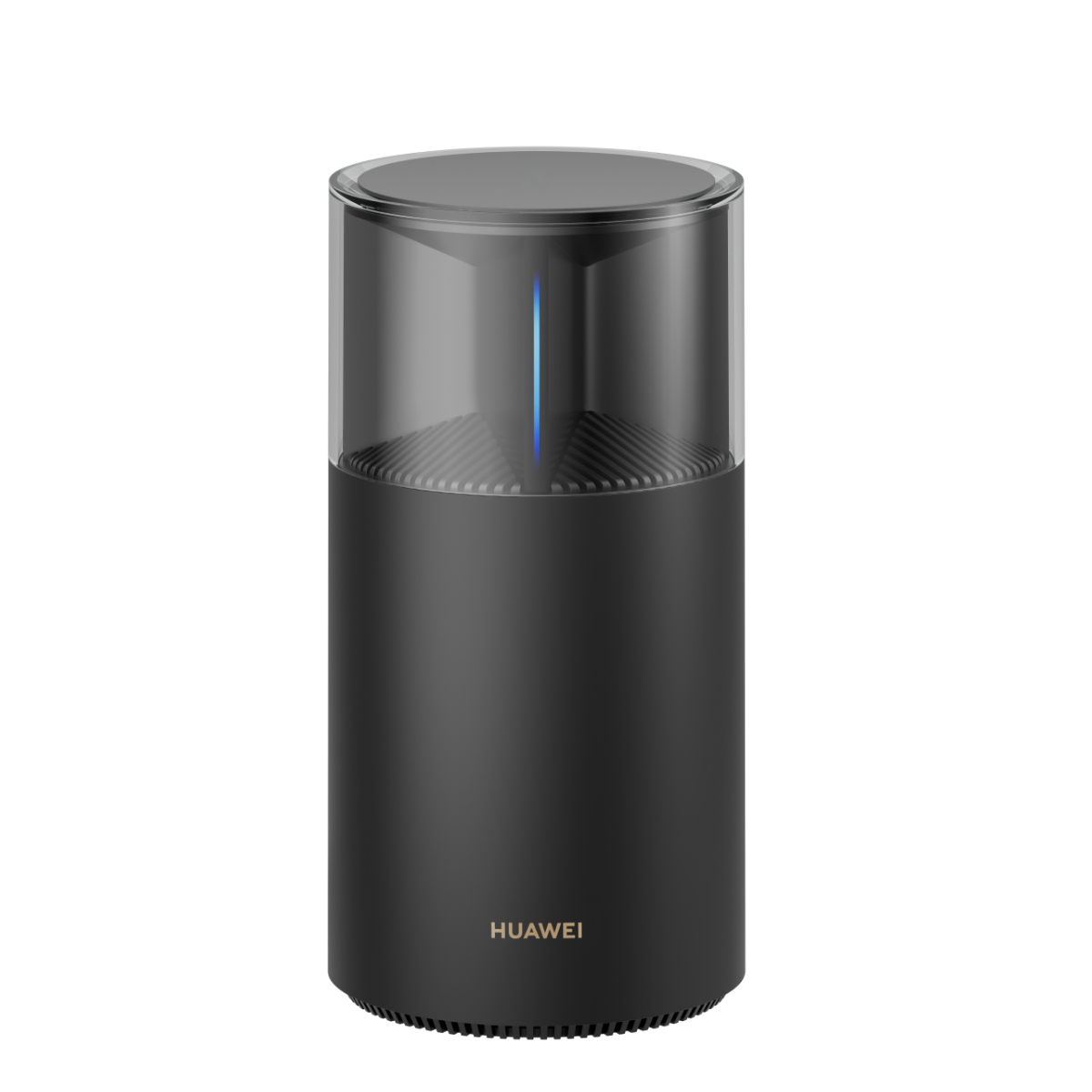

HUAWEI WiFi Mesh X1 Pro
  • Black
Black

  • Height: 227.2 mm

    Diameter: 115.4 mm

    *Actual dimensions may vary depending on configuration, manufacturing process, and measurement method.

    About 898.6 g

    *The actual weight may vary slightly according to configuration, manufacturing process, and measurement method.

  • Wireless Band

    2.4 GHz & 5 GHz (Support dual band integration configuration)

    Transmission Standard

    IEEE 802.11be/ax/ac/n/a, 2 × 2 MIMO

    IEEE 802.11be/ax/n/g/b, 2 × 2 MIMO

    *Need to be used with the corresponding Internet access device

    2 × 2 MU-MIMO: Supported

    Wireless Transmission Rate

    Wi-Fi 7 2 × 2

    2.4 GHz: 688 Mbps (theoretical)

    5 GHz: 2882 Mbps (theoretical)

    Total theoretical negotiated rate: 3570 Mbps

    Wi-Fi 6 2 × 2

    2.4 GHz: 574 Mbps (theoretical)

    5 GHz: 2402 Mbps (theoretical)

    Total theoretical negotiated rate: 2976 Mbps

    Wi-Fi 5 2 × 2

    2.4 GHz: 300 Mbps (theoretical)

    5 GHz: 867 Mbps (theoretical)

    Total theoretical negotiated rate: 1167 Mbps

    *Mbps requires the theoretical negotiated rate in 4 × 4 4K QAM mode. The actual theoretical negotiated rate is related to the device.

  • 5 omnidirectional antennas + 2 cross-floor mesh antennas

  • Network port

    10/100/1000M/2500M adaptive rate Network Port × 4

    WAN port

    One (Adaptive WAN and LAN interfaces)

    *Total four 10/100/1000/2500M adaptive rate Ethernet port

    LAN port

    Three (Adaptive WAN and LAN interfaces)

    *Total four 10/100/1000/2500M adaptive rate Ethernet port

  • indicator × 1

    *Two colors (red, ice blue)

  • Maximum power consumption

    Maximum power consumption: 24 W

    Working voltage

    DC 12V

  • Firewall security

    Supported

    HUAWEI HomeSec®

    Supported

    *HUAWEI HomeSec® security protection: Wi-Fi brute force attack prevention

    Parental Control

    Supported

    *Add Internet time, payment, gaming, video, and social network access restrictions, and block access to unsecure sites for a safer online environment.

    Wi-Fi Security

    Supported (WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, and blocklist/trustlist)

  • Internal storage (ROM)

    128 MB

    Operation memory (RAM)

    512 MB

  • Storage humidity

    5%～95%

    Storage temperature

    -40℃～70℃

    Operating temperature

    0℃～40℃

    Operating humidity

    5%～95%, non-condensing

  • 2.4G signal channel: 1-13

    5G signal channel: 36、40、44、48、52、56、60、64、100、104、108、112、116、132、136、140

    *Only channels 1, 6, and 11 can be automatically selected for 2.4G channels.

    **The supported 5G channels lower than 149 are newly opened in China. If you manually configure channels lower than 149, some old Wi-Fi devices may fail to connect to the network.

  • HUAWEI AI Life

    iOS/Android/HarmonyOS

  • Power adapter × 1

    QSG (with warranty card) × 1

    Router × 1

    Ethernet cable × 1

    *The final is subject to the actual object.
